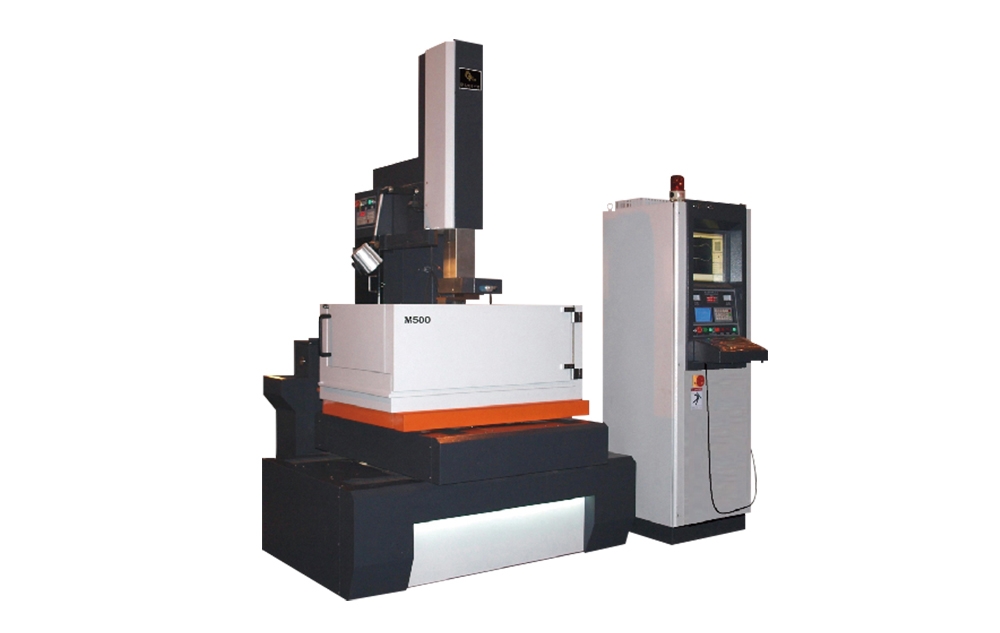

固品線切割機MC500K
機械規格
| 型別 | MC 350k | MC400k | MC 500k | MC 630k | MC 800k | MC1210k 超大機 |
MC1412k 超大機 |
|||||||
| 規格 | ||||||||||||||
| Work tank (WxDxH) 工作水槽 |
mm (inch) |
840x600x450 | 980x620x450 | 1100x700x450 | 1310x840x450 | 1500xl030x450 | 2050x 1225x650 | 2250x 1400x650 | ||||||
| Work table size (XxY) 工作台面積 |
mm (inch) |
840x600 | 980x620 | 1100x700 | 1310x840 | 1500xl030 | 2050x1225 | 2250x1400 | ||||||
| Work table travel (XxY) 工作台行程 |
mm (inch) |
400x350 | 500x400 | 630x500 | 800x630 | 1000x800 | 1200xl000 | 1400x1200 | ||||||
| Mox. work-piece thickness 最大加工件厚度 |
mm (inch) |
400 | 400 | 400 (可選配加高至 600) |
600 | 600 | 600 | 600 | ||||||
| 最大切割斜度Degree/mm) | °/mm | ±3° /100 | ±3° /100 | ±3° /100 | ±3° /100 | ±3° /100 | ±3° /100 | ±3° /100 | ||||||
| UV axis travel UV 軸行程 |
mm | ±25 | ±25 | ±25 | ±25 | ±25 | ±25 | ±25 | ||||||
| Max. work-piece size (DxWxH) 最大加工件尺寸 |
mm (inch) |
350x400x400 | 400x500x400 | 500x630x400 | 630x800x600 | 800x1000x600 | 1000x1200x600 | 1200x1400x600 | ||||||
| Max. work-piece weight 最大加工件重量 |
kgs (lbs) |
450 | 600 | 1400 | 2300 | 4000 | 5000 | 6000 | ||||||
| The wire bobbin travel 最大滾絲軸行程 |
mm (inch) |
250 | 250 | 250 | 250 | 250 | 1000x1200 | 1200x1400 | ||||||
| Dia. of molybdenum wire 電極鉬絲直徑 |
mm (inch) |
ψ0.1-ψ0.20 | ψ0.1 -ψ0.20 | ψ0.1-ψ0.20 | ψ0.1 -ψ0.20 | ψ0.1-ψ0.20 | ψ0.1-ψ0.20 | ψ0.1 -ψ0.20 | ||||||
| External dimensions (WxDxH) 外型尺寸 |
mm (inch) |
1670x1050x2480 | 1710x1280x2480 | 1830x1500x2480 | 2100x 1730x2850 | 2450x2120x2850 | 3240x2800x3150 | 3540x3120x3150 | ||||||
| Packing dimensions (WxDxH) 包裝箱外形尺寸 |
mm (inch) |
1900x1300x2340 | 1950x1500x2340 | 2120x1760x2340 | 2380x 1980x2530 | 2760x2280x2550 | 主機: 3000x 1500x1940 副機: 2900x1440x2930 |
主機: 3300x 1660x1940 副機: 3100x1440x2930 |
||||||
| Net weight 淨重 | kgs (lbs) |
1400 | 1600 | 2400 | 3100 | 4000 | 7500 | 9500 | ||||||
